Synchronous Serial Lab - OLED Screen Display Using I2C
Displaying time and sensor value

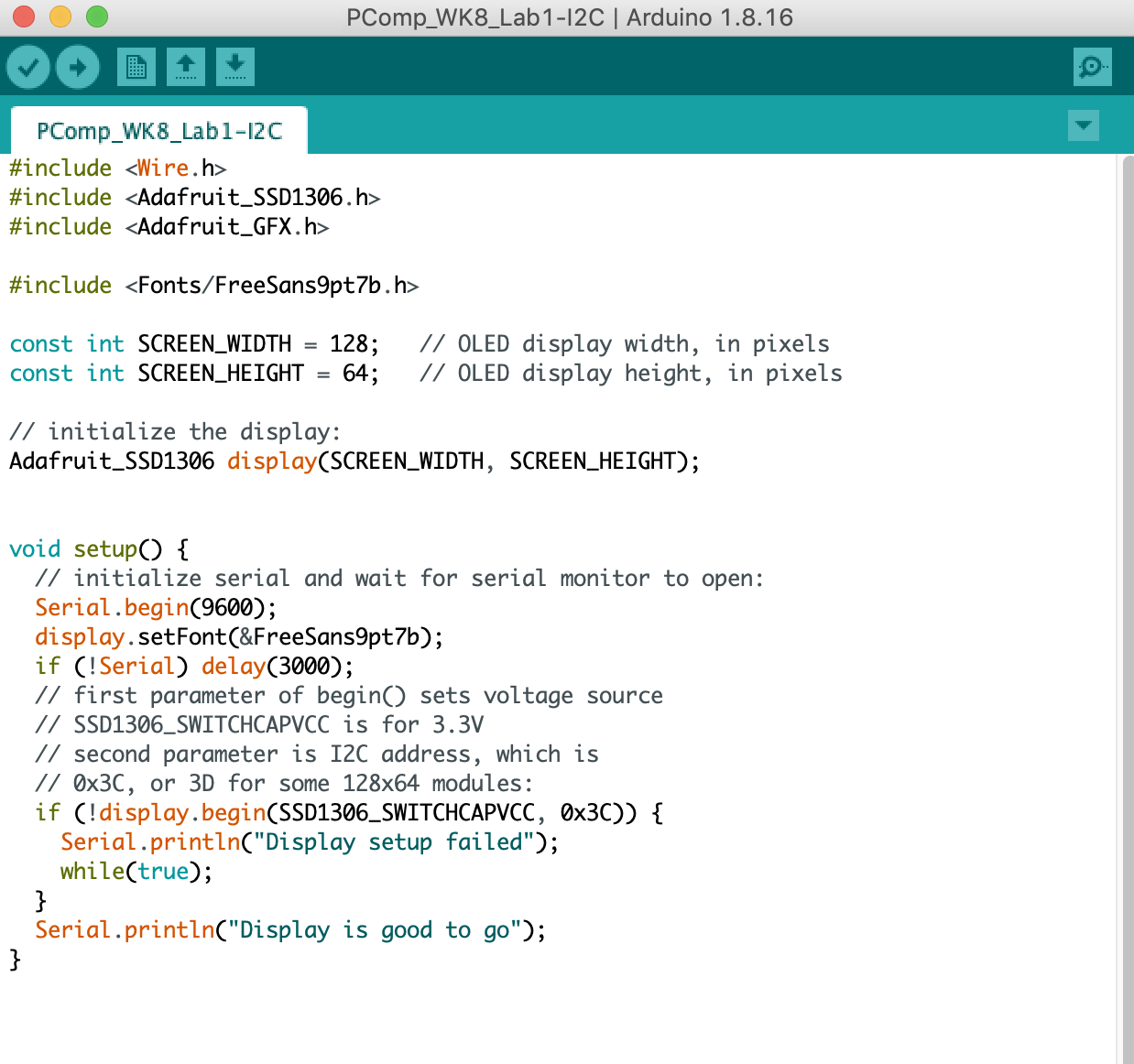

I had a small issue getting the code to read the libraries. I had added a new
tab making files titled “Adafruit_SSD1306.h” and “Adafruit_GFX” then pasting
the code from Github, but I couldn’t get it to work. Then I found that I
needed to go to the Manage Libraries tag and add the necessary ones
there– then it worked.

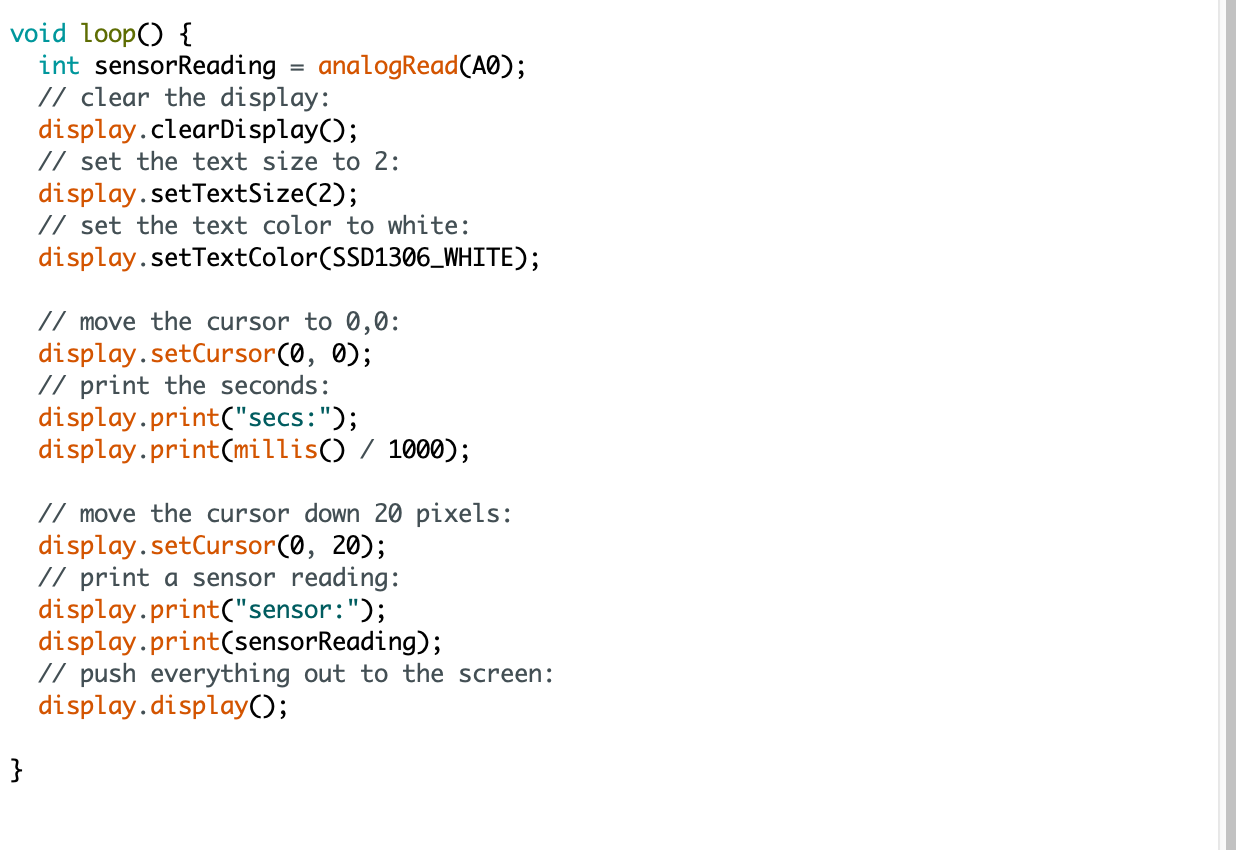

Below is the video with the OLED display reading the sensor value.
Displaying a QR code

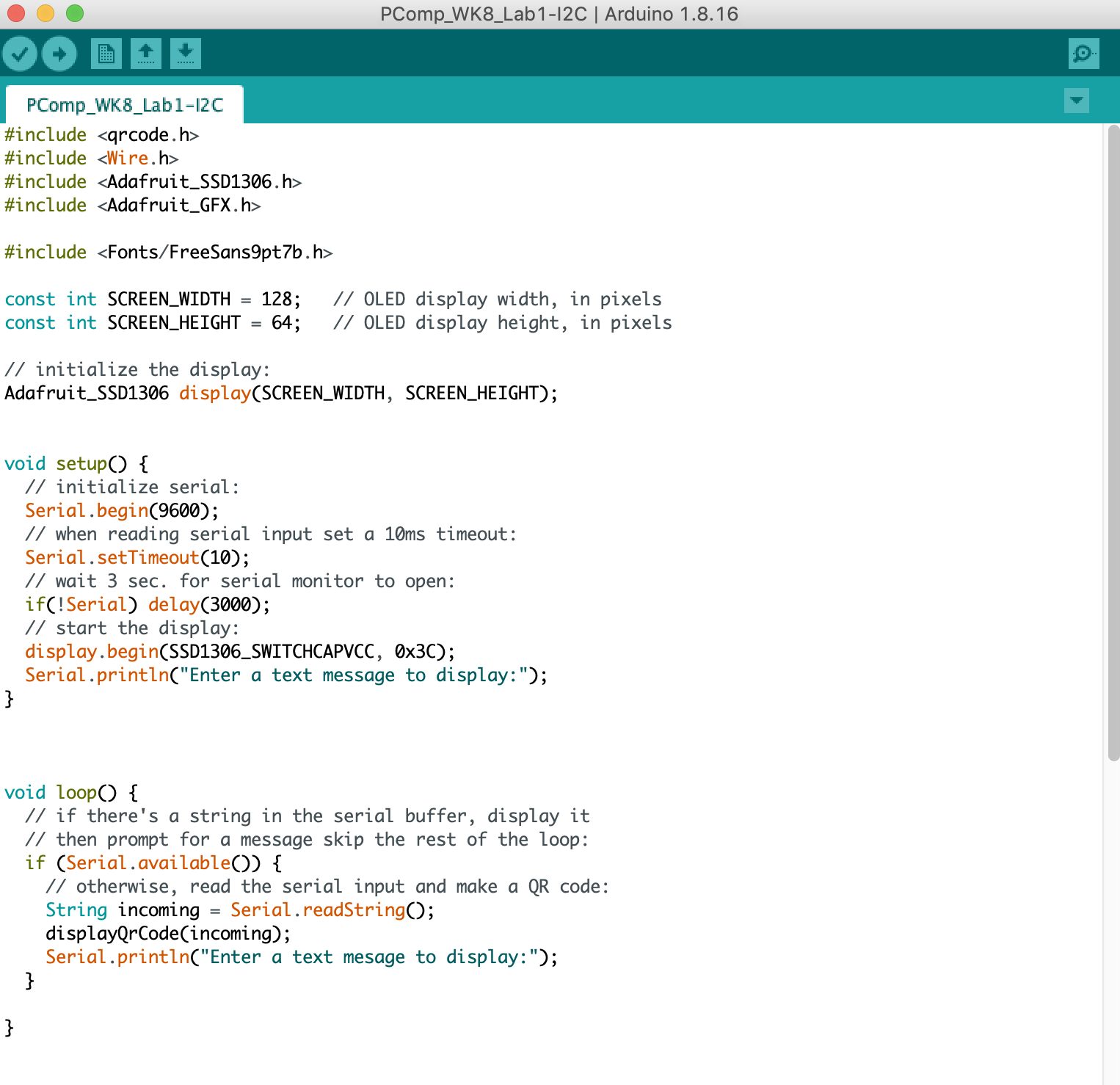

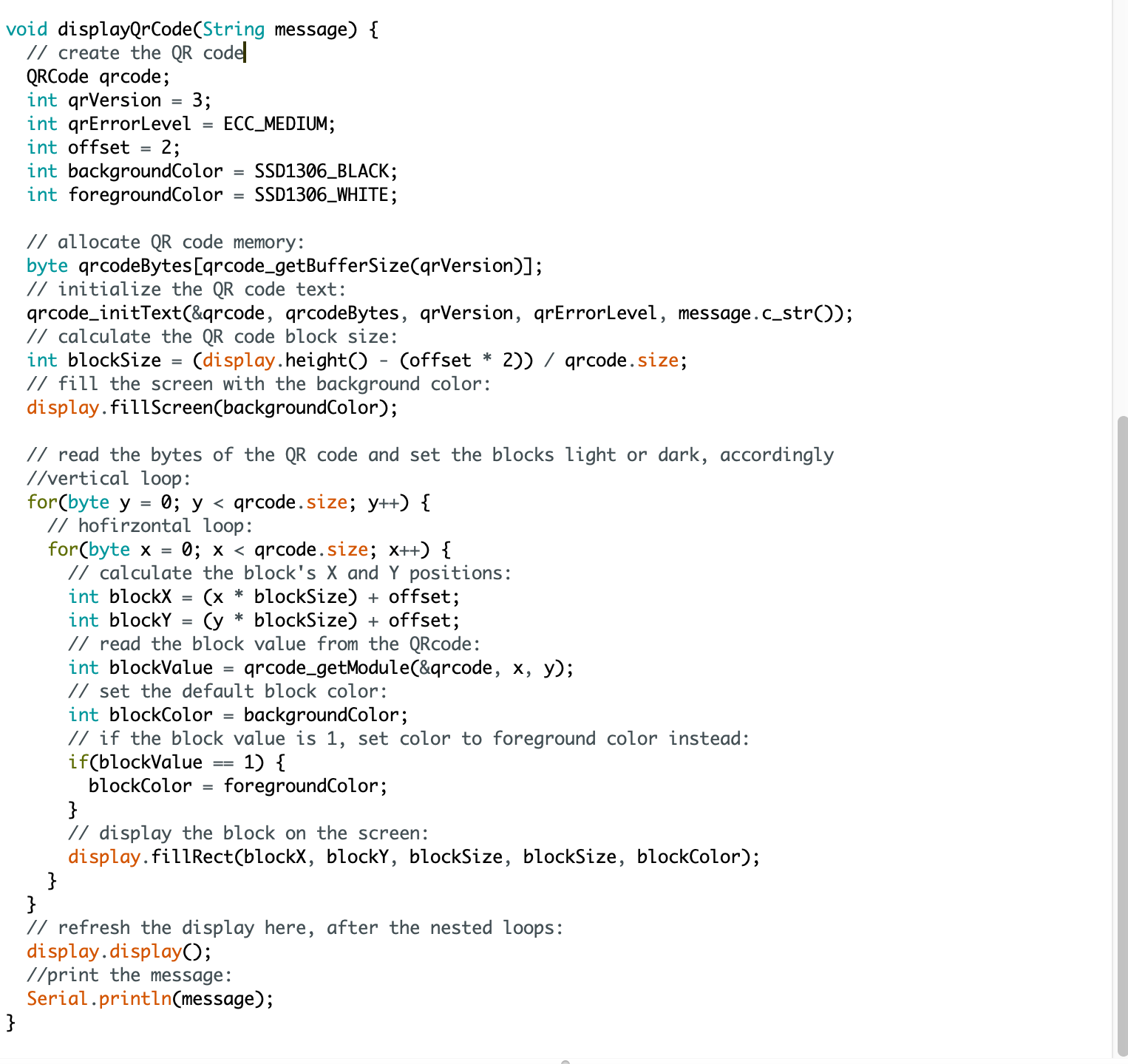

Below is the code used to generate a QR code when a string is inputed into
the serial monitor.

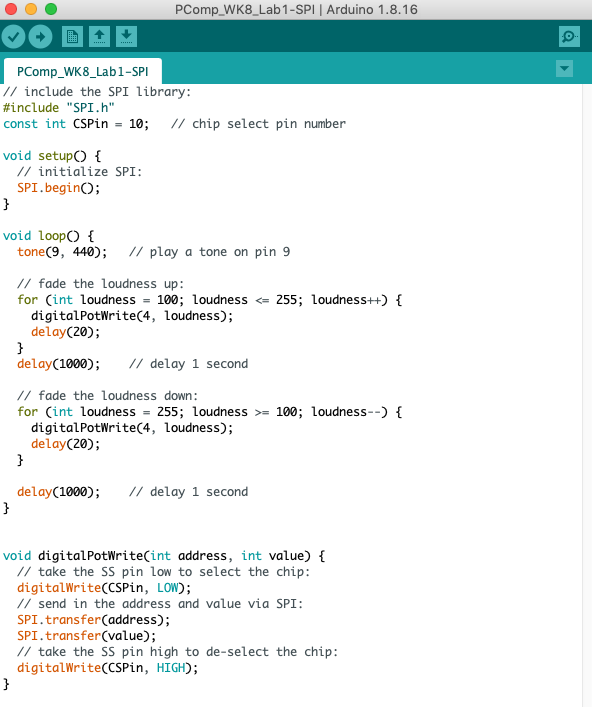

Synchronous serial lab - SPI communication with a digital potentiometer
